The J chain chaser hook can move in the direction of the anchor after hooking the anchor chain. When the anchor rod position of the anchor is held by J chain chaser hook, the vertical lifting is carried out to pull out the anchor stuck on the seabed.

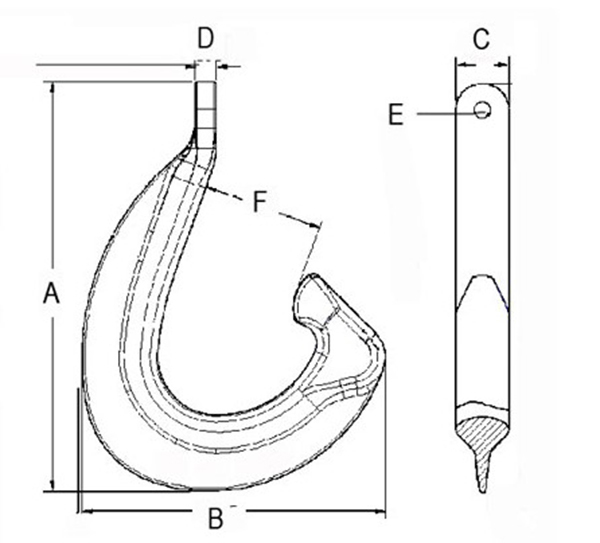

Drawings and Parameters of J Chaser Hook:
Proof Test (ton) | S.W.L (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
250 | 100 | 2436 | 1827 | 306 | 125 | 85 | 700 | 1884 |
400 | 250 | 2572 | 2184 | 456 | 180 | 144 | 700 | 3398 |
