Studless Anchor Chain

Studless Anchor Chain

Marine studless anchor chain without rail, generally suitable for small ships, mainly suitable for ships, strapping fishing net fall, mining, municipal engineering, new garden decoration. When the required cable is no more than 17mm in diameter, the stud link anchor chain may be replaced by studless anchor chain with equal test load, or wire rope or fibre rope with equal broken load.

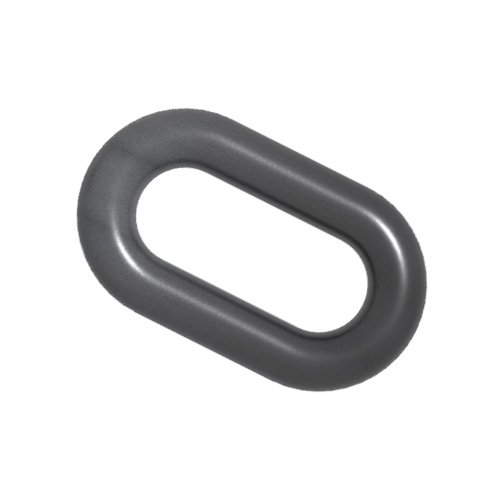

-5

Test load

Nominal diameter (mm) Verification test load (kN) Breaking test load (kN)
level 2 level 3 level 2 level 3


Nominal Diameter (mm)Proof Test Load (kN)Breaking Test Load (kN)
Grade 2Grade 3Grade 2Grade 3
22125 175 251 349
24150 208 299 416
26175 244 351 488
28204 283 407 566
30234 325 468 650
32266 360 531 739
34300 417 600 835
36336 468 672 936
38374 521 749 1043
40415 578 829 1155
42458 637 915 1274
44503 699 1000 1398
46549 794 1098 1528
48598 832 1196 1664
50649 903 1294 1805
52697 972 1394 1945
54748 1044 1497 2089
56802 1119 1603 2237
58856 1195 1713 2390
60913 1274 1826 2547
62971 1354 1941 2709
641030 1437 2060 2875
661091 1522 2182 3044
681153 1609 2307 3218
701217 1698 2434 3396
731315 1835 2631 3671
761417 1977 2833 3956
781486 2073 2972 4147
811592 2222 3184 4443
841701 2374 3403 4748
871813 2530 3627 5060
901928 2690 3856 5380
